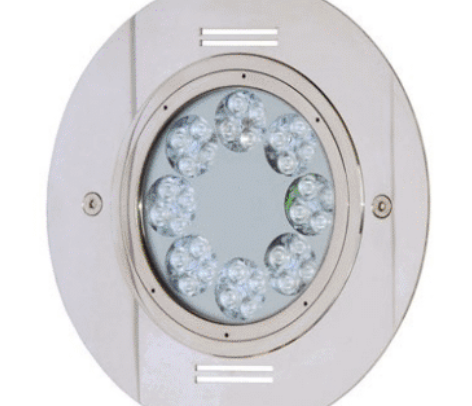

Single-color or Multi-color light control with dimming and changing of color of lighting
manually or automatically through the complete rainbow spectrum by using optional momentary switch or optional DMX512 interface LXU01 with built-in ASTEL protocol.
Stainless-Steel Casing
32 Power LEDs Design
Cool White, Warm White, RGB, RGBW
Microprocessor Control (network)
Digital Dimming
Polarity Protection
Thermal Protection
Low Power Consumption
Simple Installation
Tempered Glass Optical Window
High-Efficiency Lens
Remote Control
BASIC PARAMETERS
| Specification | Details |
| Size | Ø240 x 220 x 64 mm |
| Power Supply | 12–24 VDC,max. 10.6 A / 12 VDC or 4.8 A / 24 VDC |
| Beam Angle | 31° (standard), 85° (wide), 11° (narrow) |
| Optical Window | Tempered glass 8 mm |
| Luminous Flux | max. 10.00 – 15.00 lm (cool white) |
| Operating Temperature | -10°C to +50°C |
| Light Colour (K) | Cool white, warm white,blue, green, red, RGB, RGBW |
| Casing | Stainless steel (316L) |
| IP Rating | IP68 |
| Weight | 4.3 kg |

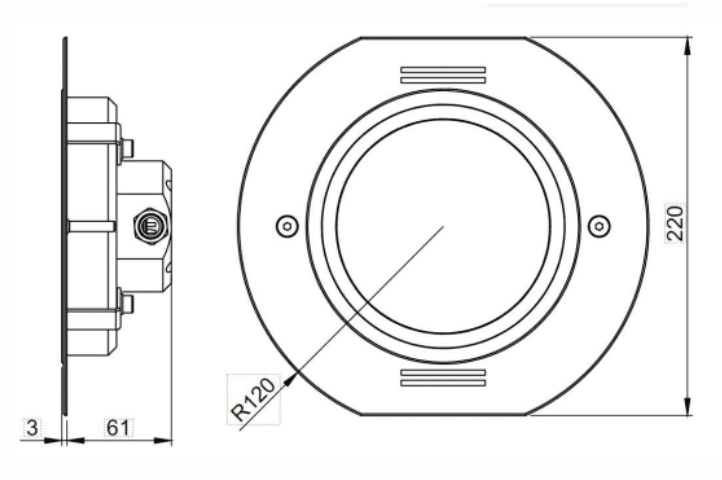

DIMENSIONS
