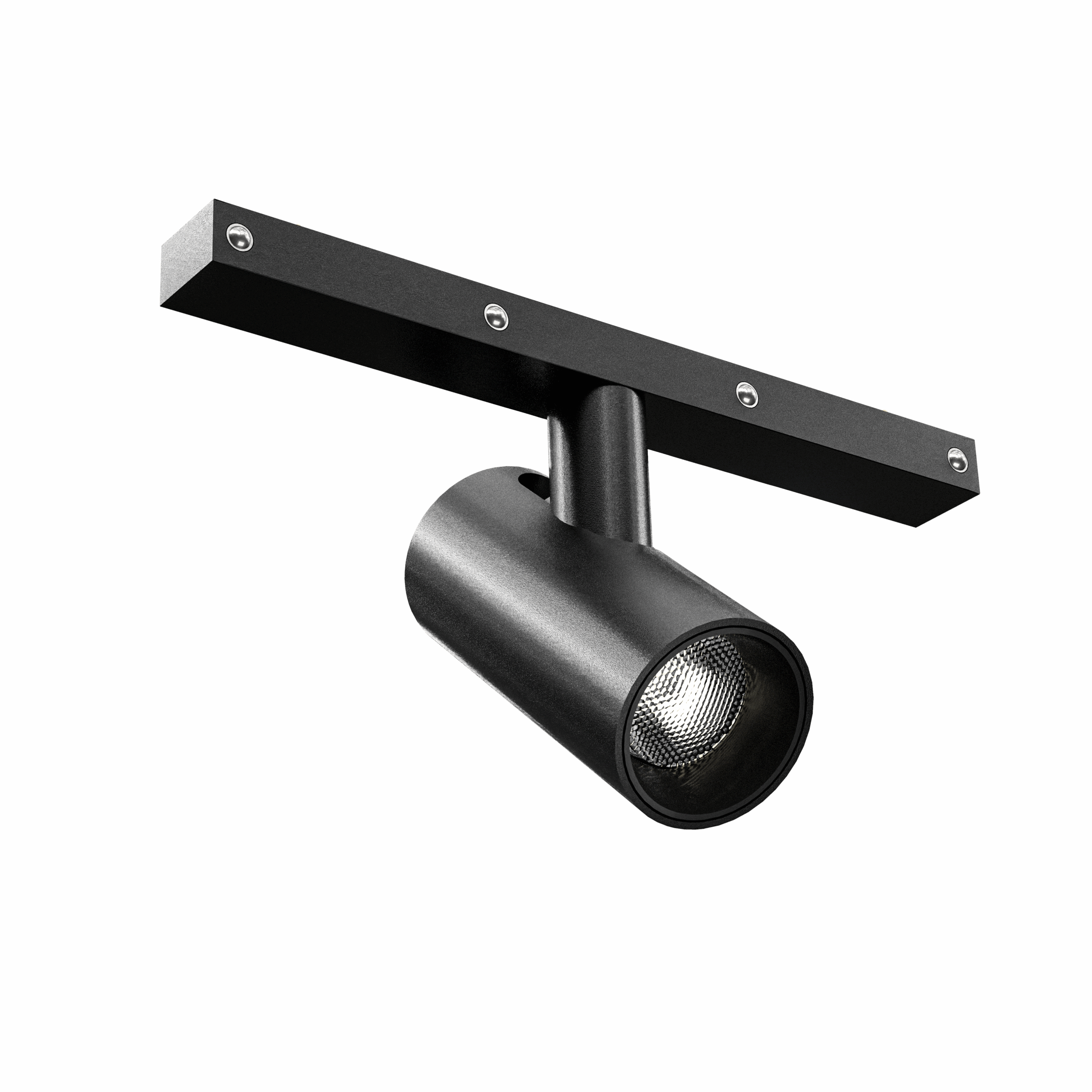

The LC10 is a compact and efficient DC24V LED spot light range, ideal for modern commercial and residential applications where precision lighting and minimal footprint are essential. With a warm 3000K color temperature and high color rendering (CRI >90, R9 >50), this series delivers excellent light quality that enhances architectural features and displays.

Key Features:

  • High CRI (Ra >90, R9 >50): Ensures vivid and true color representation.

  • Compact Design: Minimalist cylindrical form factor with track mounting system (85mm width).

  • Beam Angle Options: Narrow 24° and wider 36° beam angles available for directional flexibility.

  • Safe & Durable: Rated for indoor use (IP20), fire resistance up to 850°C, and no photobiological risk (Risk 0).

  • DC24V Low Voltage: Enhances safety and energy efficiency, suitable for integrated systems and tight spaces.

Basic Parameters

ModelPowerVoltageCCTBeam AngleProduct Size
LC10-SP203WDC24V3000K24° 36° 120*22*50mm
LC10-SP305WDC24V3000K24° 36°120*32*60mm
LC10-SP4210WDC24V3000K24° 36°150*42*90mm

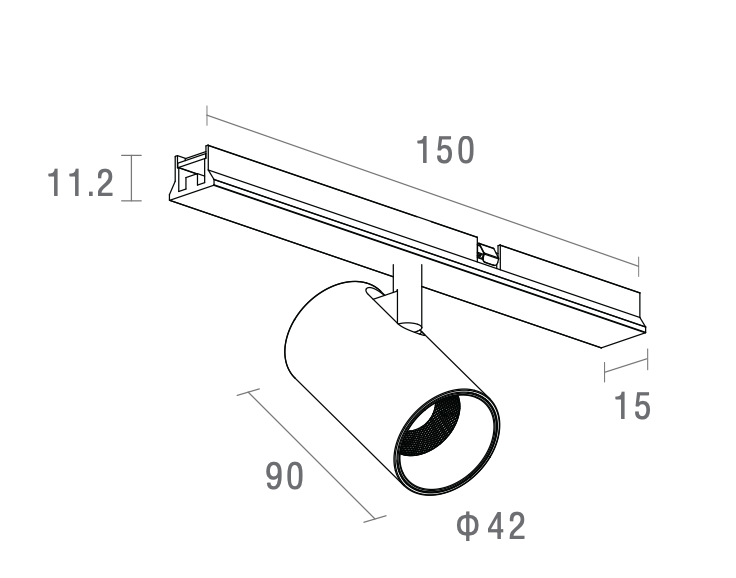

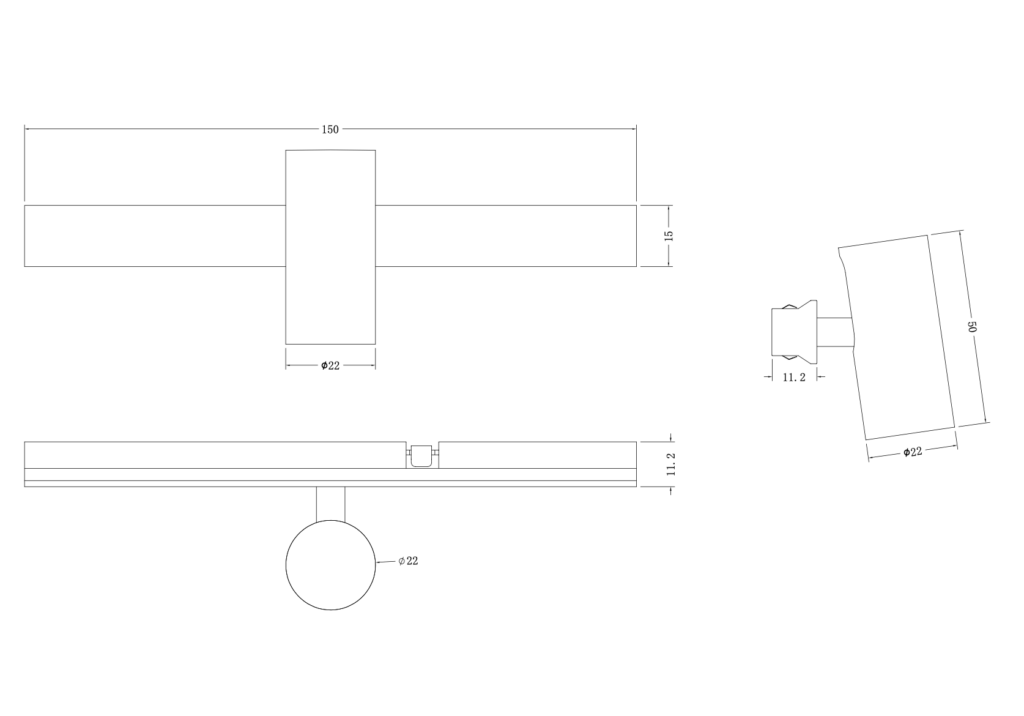

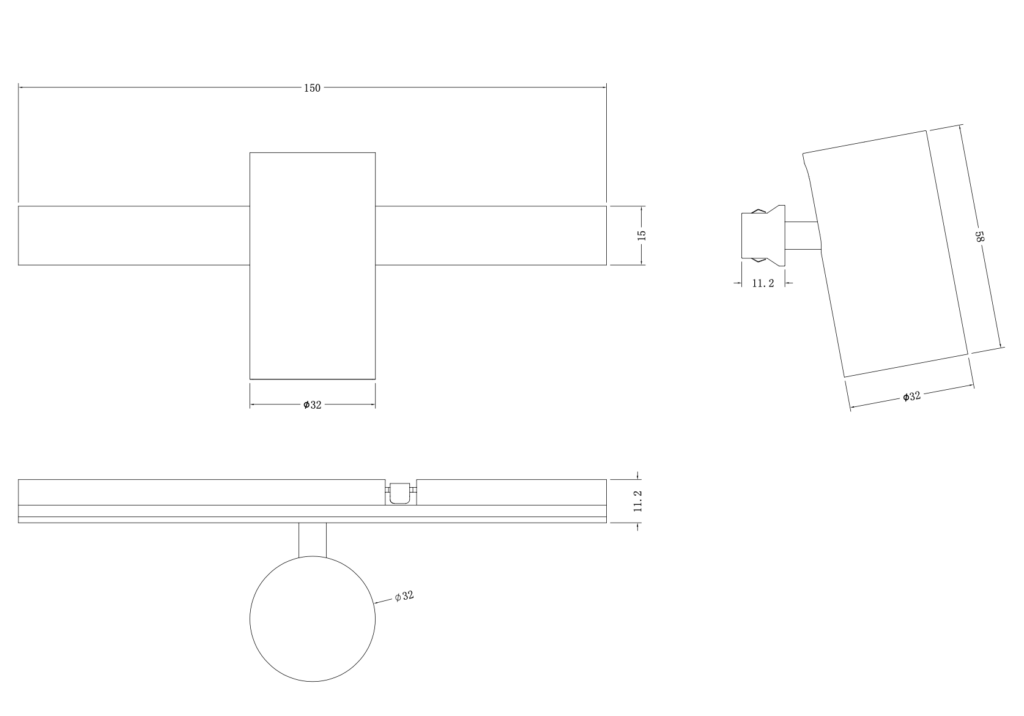

Dimensions
