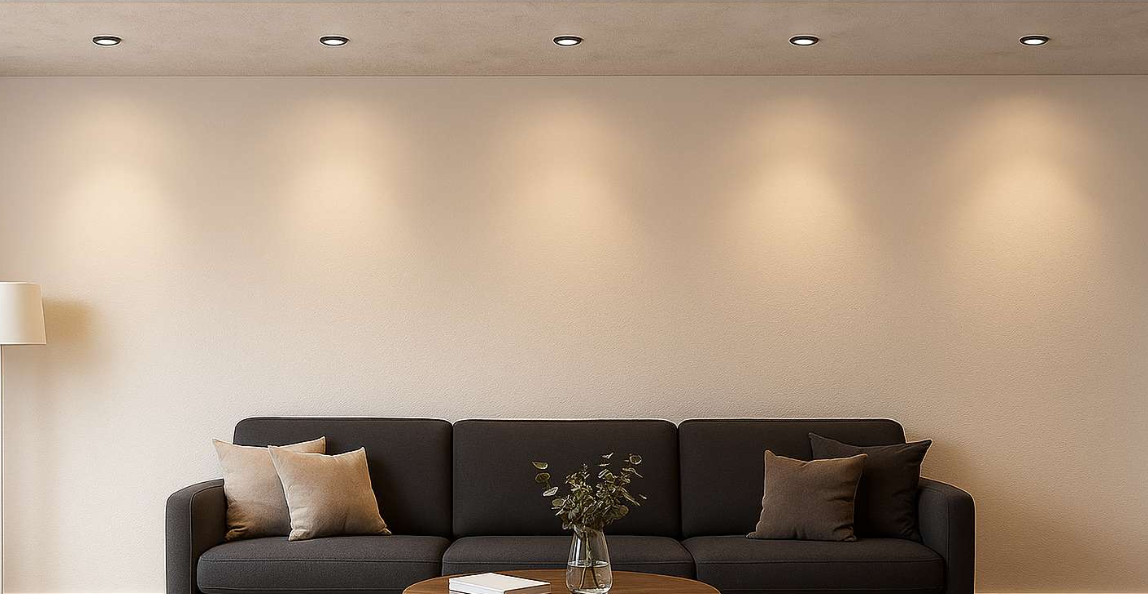

Versatile Miniature Design – Ideal for cabinet lighting, display illumination, and subtle wall wash effects.
Multiple Frame Options – Choose from 3W fixed or tilt frames, and a 7W deep set frame.
Black or Satin White powder-coated finishes.
High-Performance Optics – 24° optical lens diffuser paired with a
premium COB LED chipset for precise, powerful light output.
Colour Switching – Easily select between three colour temperature outputs via a discreet dip switch on the fitting.
Basic Parameters
| Parameter | Specification |
|---|---|
| Input Voltage | 240 VDC |
| Power | 3W or 7W |
| IP Rating | IP40 |
| Luminous Output | 3000K – 180lm | 4000K – 210lm| 5700K – 210lm |
| LED Type | COB |
| CCT (Colour Temp.) | 3000K / 4000K / 5000K (Switchable) |
| CRI (Colour Rendering Index) | ≥90 |
| Beam Angle | 24° |
| Dimmable | Yes |
| Lifespan | 50,000 hours |

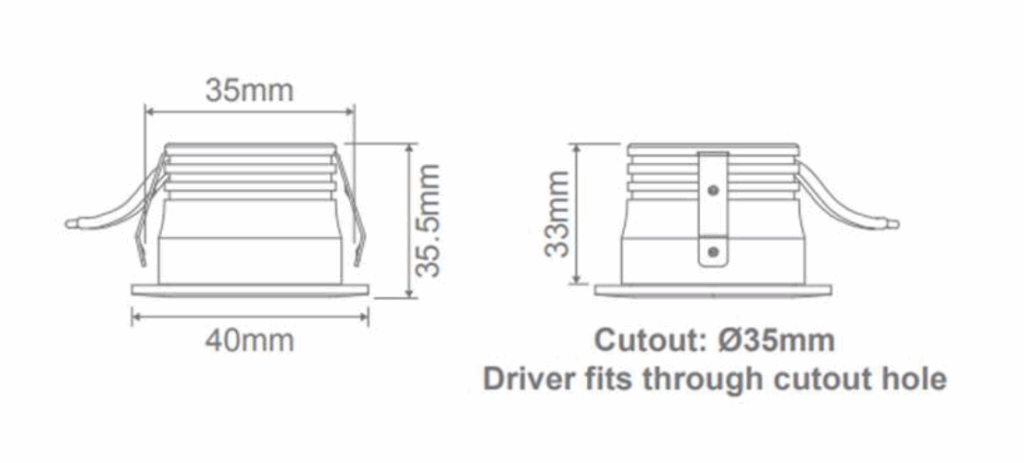

Dimensions
COLOUR TEMPERATURE
DETAILED INFORMATION
