| Basic Parameters | |
|---|---|

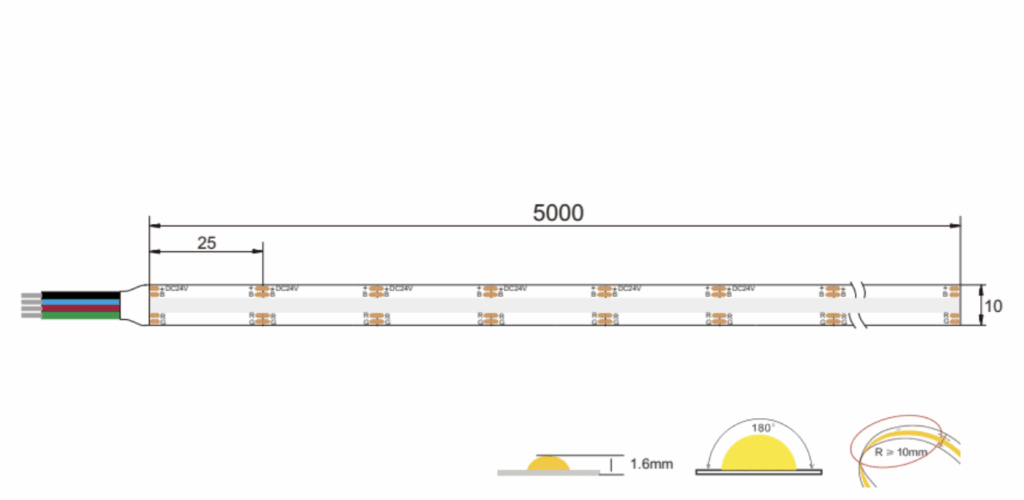

| Size | IP20: 10mm x 1.6mm x 5000 |
| Input Voltage | 24VDC |
| Input Current | 0.73A/1M and 2.92A/5M |
| Typical Power | 15W/m |
| Lifetime | 50000hrs |
| Chips/m | 840 |
| Colour / CCT | RGB |
| CRI | >90 |
| Warranty | 5 years |
| Cutting Increment | 25mm |
| Beam Angle | 180° Beam |
| CODE | COLOUR | LM/M | IP RATING |
|---|---|---|---|
| DFR-24-10-R | RED | 198 | 20 |
| DFR-24-10-G | GREEN | 413 | 20 |
| DFR-24-10-B | BLUE | 94 | 20 |
COLOUR TEMPERATURE
DETAILED INFORMATION
| Basic Parameters | |
|---|---|
| Size | IP20: 10mm x 1.6mm x 5000 |
| Input Voltage | 24VDC |
| Input Current | 0.73A/1M and 2.92A/5M |
| Typical Power | 15W/m |
| Lifetime | 50000hrs |
| Chips/m | 840 |
| Colour / CCT | RGB |
| CRI | >90 |
| Warranty | 5 years |
| Cutting Increment | 25mm |
| Beam Angle | 180° Beam |
| CODE | COLOUR | LM/M | IP RATING |
|---|---|---|---|
| DFR-24-10-R | RED | 198 | 20 |
| DFR-24-10-G | GREEN | 413 | 20 |
| DFR-24-10-B | BLUE | 94 | 20 |
COLOUR TEMPERATURE
DETAILED INFORMATION
